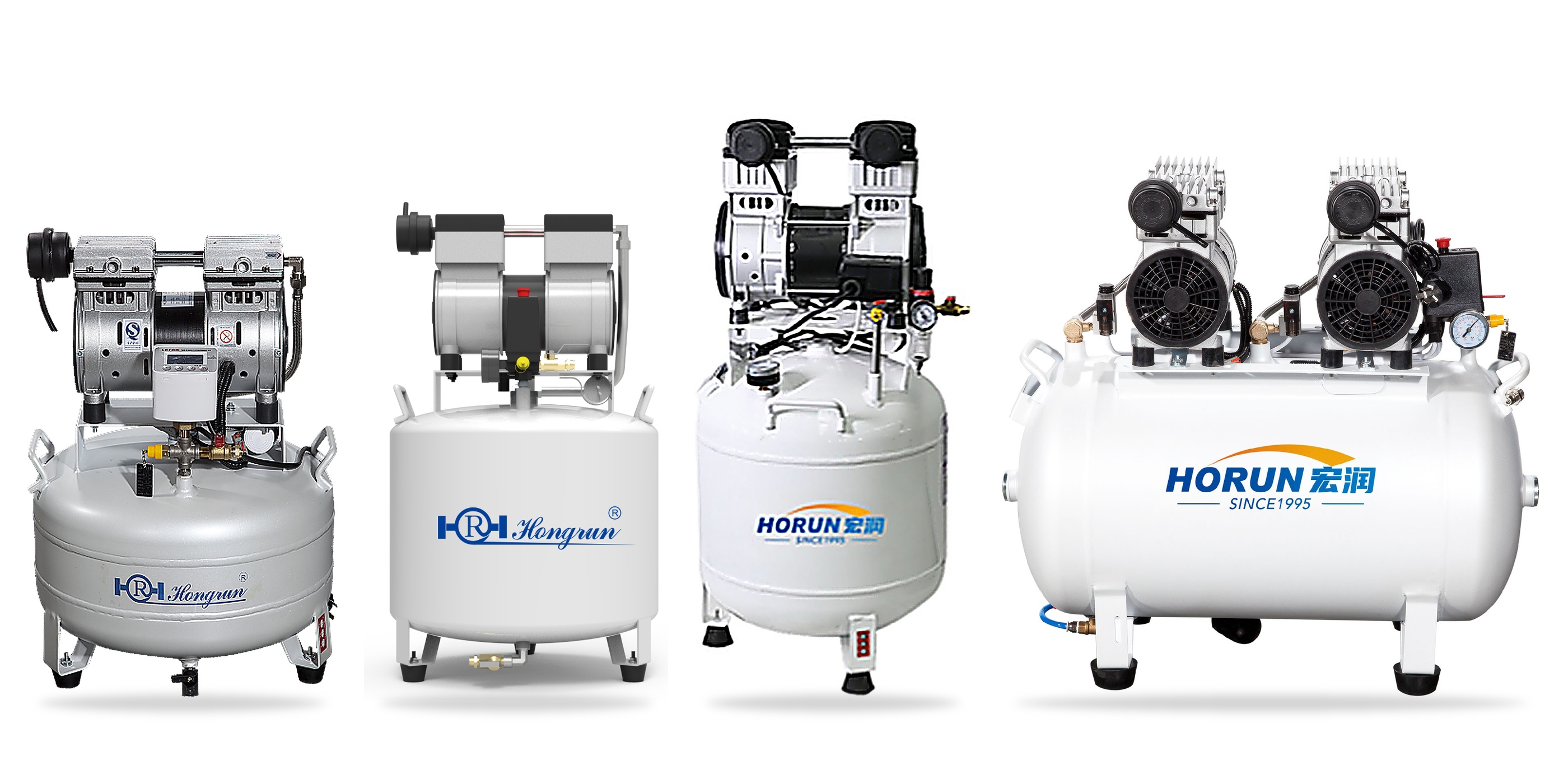

Hongrun Medical Precision Oil-Free Compressor Lineup (HY-100 · HY-200 32L · HY-300 50L · HYTG-300 90L)
Executive Summary & Engineering Key Points
- Zero Hydrocarbon Purity: 100% oil-free compression eliminates volatile hydrocarbon vapor that causes up to 38% loss in composite resin shear bond strength during restorative procedures.
- Wobble Piston Kinematics: Eliminates the gudgeon wrist-pin. Self-aligning single-piece rod reduces reciprocating mass by 42% and mechanical friction by 35% compared to traditional crosshead compressors.
- Nano-Antibacterial Receiver: Electrostatic composite polymer-ceramic inner lining permanently passivates the tank wall, eliminating rust flaking and secondary bacterial biofilm formation.
- Multi-Host Smart Redundancy: Intelligent alternating control (HYT / HYTG Series) guarantees N+1 hospital-grade continuous air supply with zero clinical downtime during single-pump maintenance.
1. The Clinical Imperative: Why Medical Dental Air Demands ISO 8573-1 Class 0 Purity
In modern dental and medical operatory environments, compressed air is not merely a utility power source—it is an active pharmacological and medical instrument delivery medium. Dental turbines operating at rotational speeds exceeding 400,000 RPM, ultrasonic scalers, air abrasion sandblasting units, and sensitive 3-way syringes directly inject pressurized gas into open oral wounds, root canals, and prepared dentin tubules.
When conventional oil-lubricated compressors or low-grade compressors with failing filtration are used, microscopic oil aerosol droplets (0.01–5.0 μm) inevitably penetrate the pneumatic lines. This leads to three severe clinical consequences:
Adhesion & Bonding Failure
Micro-droplets of oil deposited on etched enamel create a hydrophobic barrier, preventing bonding resin monomer penetration and causing premature restoration detachment.
Turbine Bearing Seizure
Hydrocarbon sludge mixes with moisture to form gummy varnishes on micro-ceramic bearings, increasing friction, elevating handpiece head temperatures, and causing premature turbine burnout.
Cross-Infection & Biofilm
Uncoated iron tanks corrode under high-humidity conditions. Rust particulate and condensation sludge become breeding grounds for opportunistic pathogens such as Legionella pneumophila.
2. International Regulatory Frameworks: Purity Thresholds & Classification
To eliminate medical risks, global medical device authorities mandate rigorous contamination ceilings across three core parameters: Total Oil Content, Solid Particulate Size, and Pressure Dew Point (Moisture).
| Standard & Jurisdiction | Total Oil Limit (mg/m³) | Solid Particles (μm) | Pressure Dew Point (°C) | Clinical Target Application |
|---|---|---|---|---|
| ISO 8573-1:2010 Class 0 (Hongrun) | 0.00 mg/m³ (Non-detectable) | ≤ 0.01 μm (99.999% HEPA) | ≤ -40°C (Dual-Tower PSA) | Highest Global Tier |
| ISO 8573-1 Class 1 | ≤ 0.01 mg/m³ | ≤ 0.1 μm | ≤ -70°C to -40°C | Critical Pharmaceutical / Precision |
| HTM 02-01 (UK NHS / Europe) | ≤ 0.1 mg/m³ | ≤ 1.0 μm | ≤ -46°C @ atmospheric | Hospital Medical Air / Surgical Pipeline |
| GB 50751-2012 / WS 507-2016 (China) | ≤ 0.1 mg/m³ | ≤ 0.5 μm | ≤ -20°C (Dental/Endoscopy) | Hospital Central Gas & Endoscope Drying |
3. Deep Engineering Teardown: Kinematic Mechanics of the Hongrun HY Series
Unlike converted industrial reciprocating compressors that rely on splash-lubricated sumps or fragile oil-free piston rings, the Hongrun HY Series (ZB100 / ZB200 / ZB300) utilizes an uncompromising, dedicated medical wobble-piston (摇摆活塞) architectural framework.
Figure 1.1: Precision Exploded Engineering Schematic of Hongrun HY Wobble-Piston Pump Head, Saint-Gobain Composite Piston Rings, Flapper Reed Valve, and Nano-Coated Vessel (Click to Zoom).

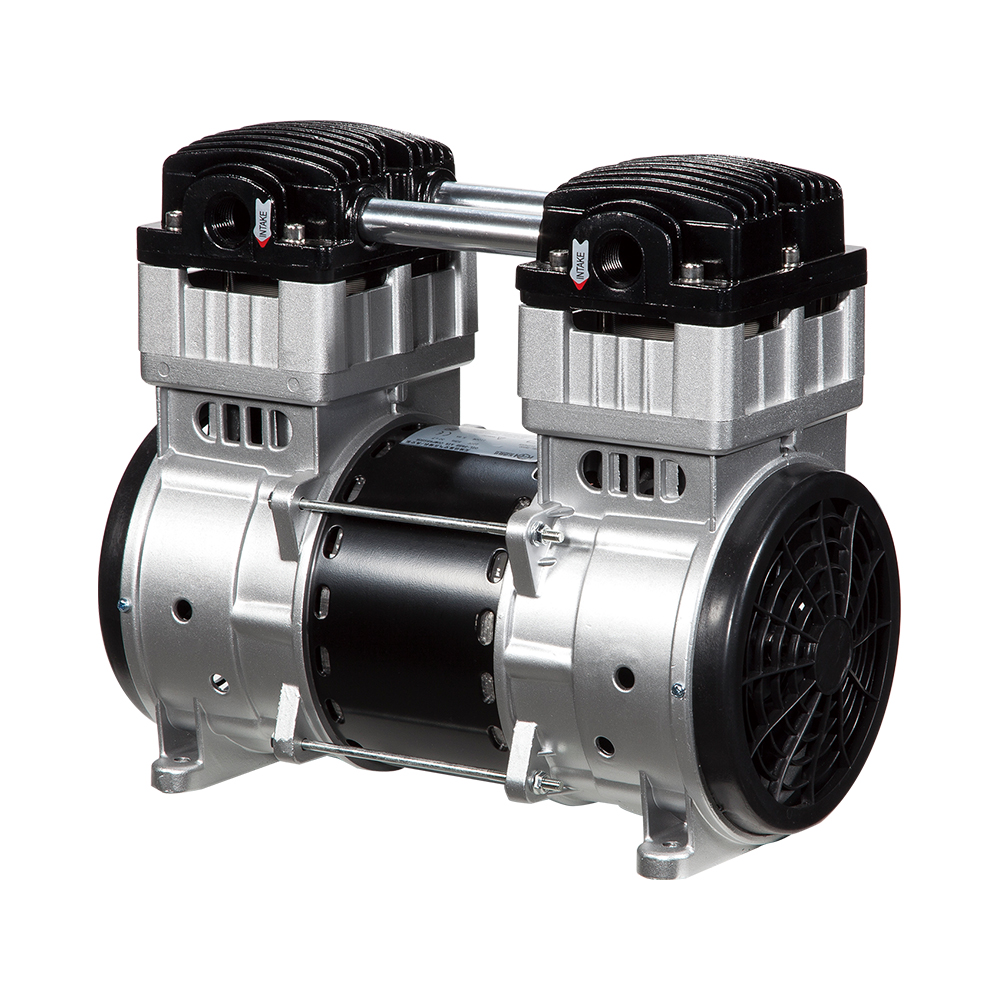

Figure 1.2: ZB-300 Proprietary Wobble-Piston Motor Head
1.1 kW / 200 L/min medical pump head with Saint-Gobain PTFE rings, Swedish flapper valves, and dynamic rotor balancing (≤65 dB).

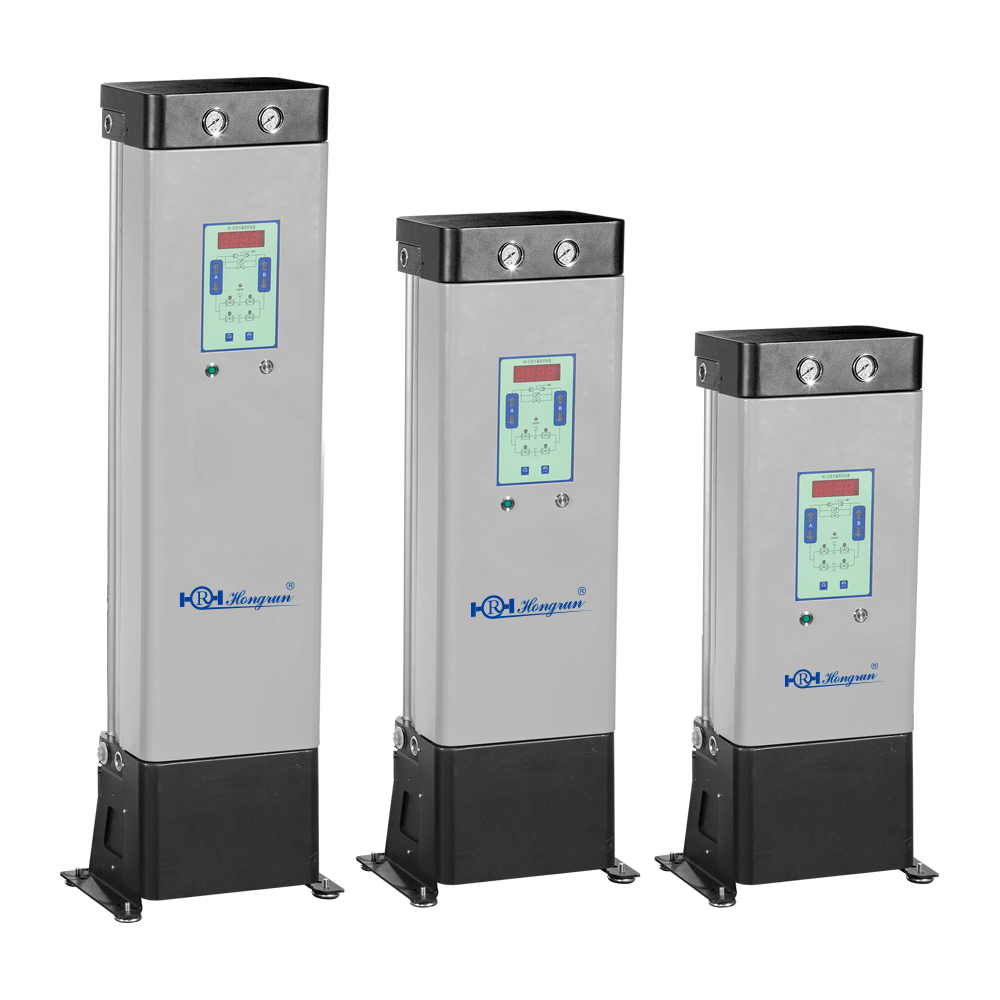

Figure 1.3: Modular Twin-Tower PSA Desiccant Air Dryer
Molecular sieve adsorption module delivering continuous -40°C pressure dew point and 0.01 μm medical-grade sterile filtration.
Saint-Gobain PTFE Composite Ring
Piston rings are engineered with high-temperature, wear-resistant self-lubricating PTFE composite polymers imported from Saint-Gobain France. The material maintains elasticity across -40°C to +220°C with an ultra-low dynamic friction coefficient (μ ≤ 0.08), eliminating the need for crankcase lubricating oil.
Nano-Coated Anti-Corrosion Tank
The interior of the 24L–200L pressure vessels undergoes automated phosphating passivation followed by electrostatic spraying of high-density nano-ceramic polymer composite coatings. This forms an impermeable barrier against acidic moisture condensation, preventing internal oxidation and bacteriological colonization.
Intelligent Alternating Redundancy
For multi-pump installations (HYT-200, HYTG-300, HYT-400, HYT-500), the smart controller dynamically balances runtime hours across pump heads and coordinates staggered zero-pressure electromagnetic unloader startups. In the event of a single-head anomaly, the backup units seamlessly carry full clinical loads.
4. Comparative Engineering Benchmark: Hongrun vs. Generic Market Compressors
| Engineering Dimension | Hongrun HY Series (Medical Tier) | Generic Domestic Assembly | Imported High-Cost Brands |
|---|---|---|---|
| Core Pump R&D | Proprietary Wobble-Piston Patents (ZB Series) | Off-the-shelf OEM Public Castings | Proprietary (High Premium) |
| Tank Internal Surface | Electrostatic Nano Composite Coating (Anti-Rust) | Raw Carbon Steel / Uncoated (Rust Risk) | Coated or Stainless Steel |
| Piston Ring Friction Material | Saint-Gobain High-Wear Self-Lubricating PTFE | Generic Virgin PTFE (Fast Wear <2000 hrs) | Proprietary PTFE |
| Acoustic Profile (@1m) | ≤ 65 dB(A) (Quiet Point-of-Use) | 72–78 dB(A) (Vibration & Resonance) | ≤ 62–66 dB(A) |
| Regulatory Accreditation | ISO 13485, CE MDR, NMPA Class II Medical | Industrial Only / Non-Medical | ISO 13485, CE, FDA |
| 5-Year Total Cost of Ownership (TCO) | Optimal (High Efficiency + Low Spares Cost) | Unpredictable (Frequent Head Failures) | Excessive (300–500% Parts Markup) |
5. Clinical Sizing Guide: Mathematical Flow Calculations for 1 to 50 Dental Chairs
Proper pneumatic sizing requires calculating the Total Free Air Delivery (FAD) under peak simultaneous operational demand. Under international dental clinic engineering design guidelines (HTM 02-01 & ISO 10637), the required compressor capacity is formulated as:
24L Tank

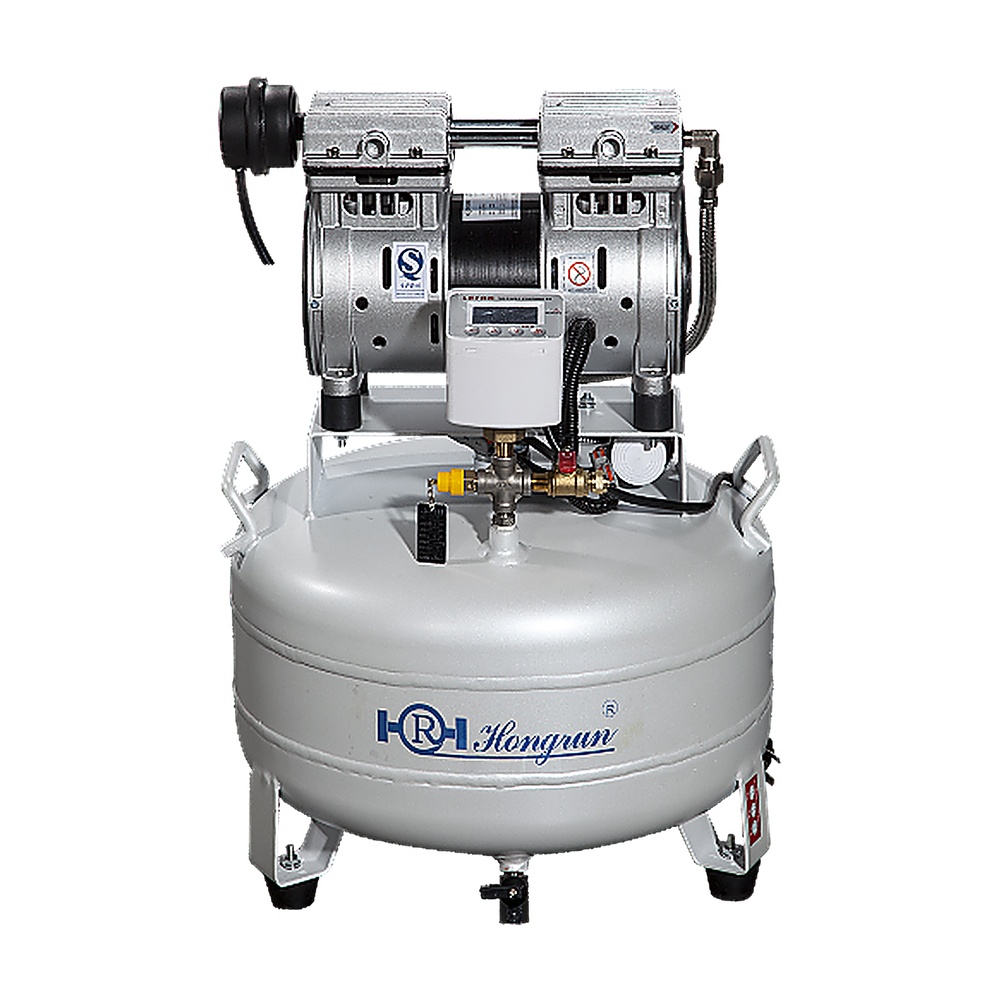

HY-100 Point-of-Care
32L Standard

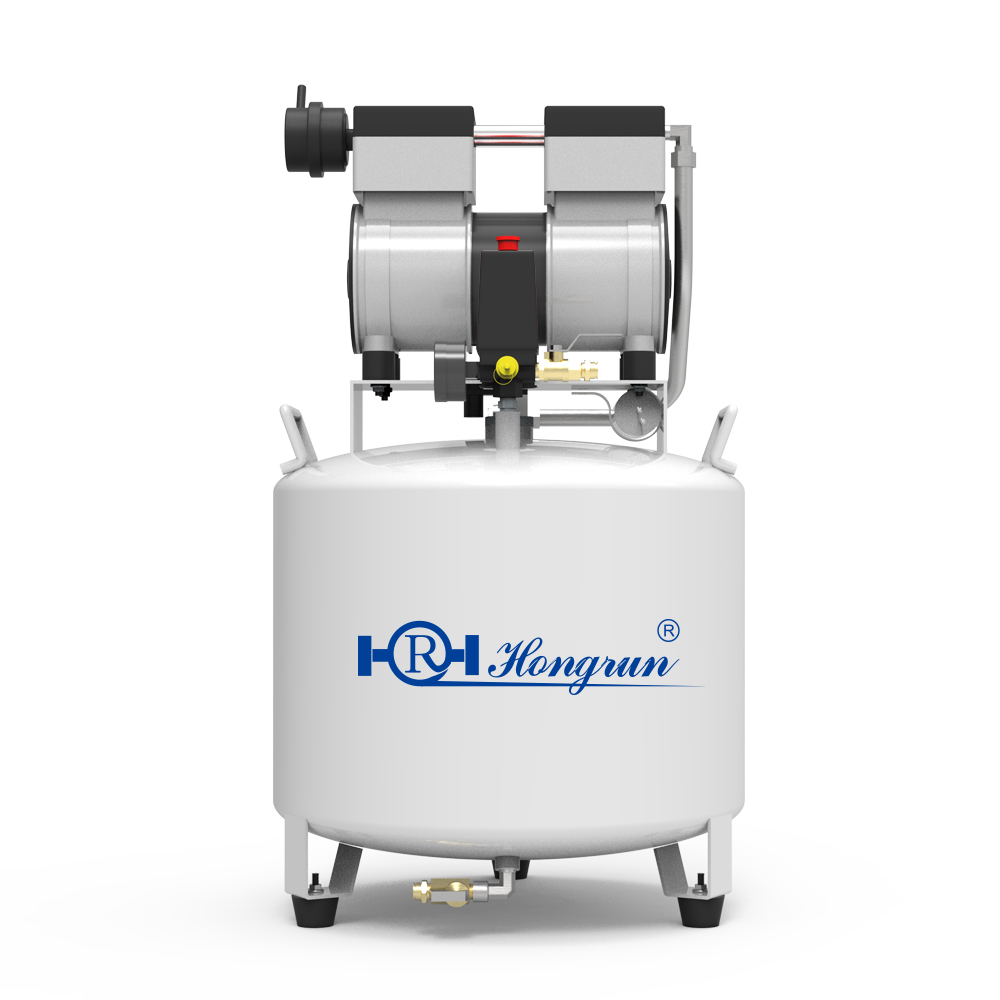

HY-200 Standard
50L High-Cap

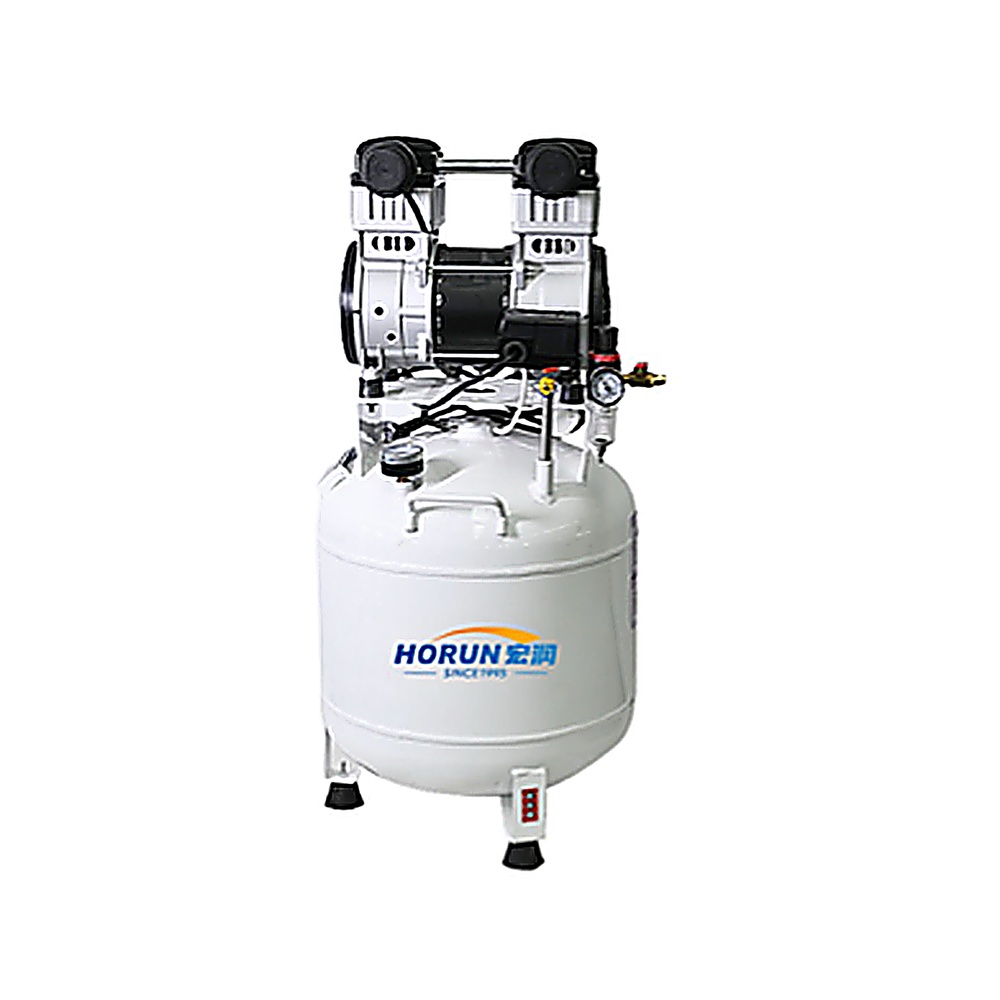

HY-300 High-Output
90L Twin Host

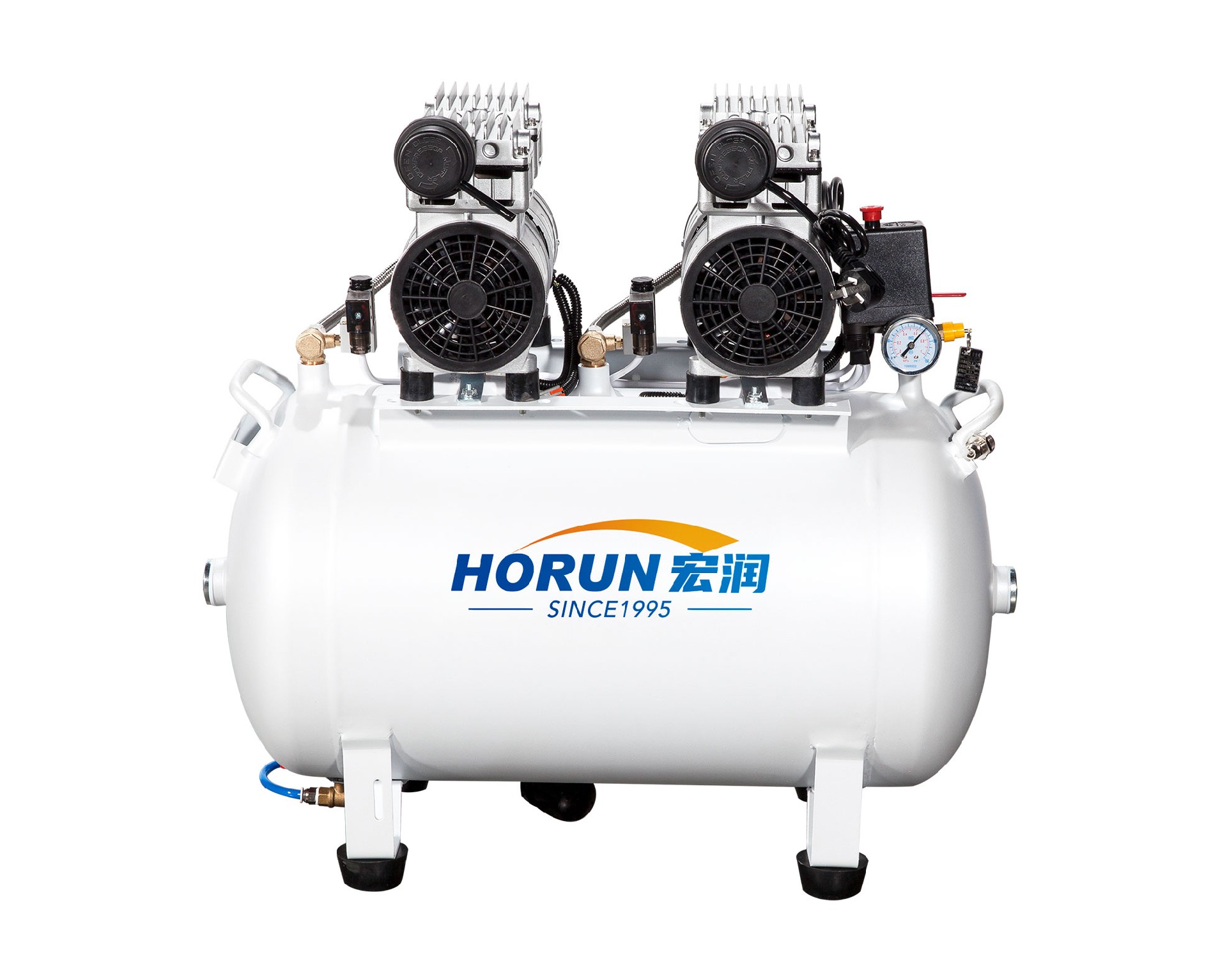

HYTG-300 Twin Redundant
| Recommended Model | Chair Scale | Power (kW) | Max Flow (L/min) | Tank (L) | Noise (dB) | Voltage | Primary Facility Typology |
|---|---|---|---|---|---|---|---|
| HY-100 | 1 Chair | 0.55 kW (ZB100) | 100 L/min | 24 L | ≤ 65 dB | 220V | Private Solo Practice / Mobile Clinic |
| HY-200 | 1–2 Chairs | 0.75 kW (ZB200) | 150 L/min | 32 L | ≤ 65 dB | 220V | Standard Two-Chair Dental Operatory |
| HY-300 | 2–3 Chairs | 1.10 kW (ZB300) | 200 L/min | 50 L | ≤ 65 dB | 220V | High-Volume Restorative & Orthodontic Suite |
| HYT-200 | 2–4 Chairs | 1.50 kW (0.75×2) | 300 L/min | 60 L | ≤ 65 dB | 220V | Twin-Host Redundant Clinic Station |
| HYTG-300 | 3–5 Chairs | 2.20 kW (1.10×2) | 400 L/min | 90 L | ≤ 65 dB | 220V | Multi-Room Surgery + Lab Handpieces |
| HYT-400 | 5–8 Chairs | 3.30 kW (1.10×3) | 600 L/min | 120 L | ≤ 68 dB | 380V | Specialized Dental Hospital Department |
| HYT-500 | 8–12 Chairs | 4.40 kW (1.10×4) | 800 L/min | 200 L | ≤ 68 dB | 380V | Regional Oral Care Center / Dental Polyclinic |
| HBG-400 / 800 / 1200 | 15–50+ Chairs | 3.0–9.0 kW (4V) | 500–1,500 L/min | 150–500 L | ≤ 65 dB | 380V | Class II Medical Plant Room Central Station |
6. Expanded Hospital Applications: Endoscopy Centers & CSSD Sterilization
Endoscopy Reprocessing (WS 507-2016)
Gastrointestinal & Bronchoscopy CentersFollowing automated high-level disinfection, endoscope lumens require immediate pressurized air purging (0.2–0.4 MPa). Even trace oil mist creates irreversible chemical residues inside flexible biopsy channels. Hongrun Class 0 air eliminates channel degradation and guarantees total moisture evacuation.
Central Sterile Supply (CSSD WS 310.2)
Hospital Sterilization & PackagingSterilizer chamber air purge, optical laparoscopic instrument internal channel blowdown, and robotic arm pneumatic seal operations strictly forbid oil hydrocarbons. Hongrun integrated stations deliver ≤ -40°C dew point dry air to prevent autoclave staining and vacuum pack punctures.
医用无油压缩空气的工程精密度：技术架构、ISO 8573-1 Class 0 认证与牙科中心供气选型全指南
宏润科技 30 年精密气动研发中心 · 活塞机头自研专利与纳米防锈抑菌储气罐深度拆解
核心内容与技术要点导读
在现代口腔临床与医院手术中心，压缩空气不仅是驱动气动手机的动力源，更作为直接吹向开放创口与牙体微孔的医疗介质。本报告基于宏润科技基础产品培训体系与行业技术规范，全面解析 100% 纯无油活塞机头（ZB 系列）的机械摩擦学设计、纳米复合抑菌储气罐的防锈工艺、多机头智能变频轮换逻辑，并给出 1 至 50 台牙椅的精准供气选型数学公式与实施方案。
一、 临床严苛要求：为什么口腔诊疗必须达到 ISO 8573-1 Class 0 零级无油标准？
口腔高速手机转速高达 350,000 至 450,000 rpm，其内部微型陶瓷轴承与气动涡轮对气体介质中的悬浮油雾极为敏感。普通工业空压机排放的微量碳氢化合物会引发三大临床事故：
- 树脂充填粘接失败： 微量油膜沉积在酸蚀后的牙本质小管表面，形成疏水层，使树脂单体无法形成致密微机械锁结，导致粘接剪切强度下降高达 38%，引发术后敏感与充填体过早脱落。
- 高速手机轴承抱死与发热： 含有微量润滑油的高温压缩气体与水分结合，在手机微型轴承滚珠上形成粘滞油垢，导致轴承转速下降、异响加剧，甚至在患者口内发生机头瞬间过热烫伤软组织。
- 管路生物膜与交叉感染： 传统未作内壁处理的碳钢储气罐在潮湿环境下迅速锈蚀，产生的铁锈粉尘与冷凝水垢在气路内壁滋生军团菌等条件致病菌，随气枪吹射直接进入拔牙创口或根管内。
二、 宏润 HY 系列五大核心技术优势与机械结构深度解析
1. 自主研发润滑活塞机头（ZB 系列专利）
区别于外购通用公模机头的组装品牌，宏润拥有完全自主知识产权的摇摆活塞（Wobble Piston）机头。采用法国圣戈班进口高耐磨高分子 PTFE 复合活塞环，配合瑞典不锈钢弹簧阀片，动摩擦系数 ≤ 0.08，彻底杜绝曲轴箱任何油脂，额定连续无故障运行寿命超过 10,000 小时。
2. 纳米复合涂层储气罐（防锈·抑菌）
储气罐内壁经过高精度磷化钝化与全自动静电旋风喷涂工艺，形成致密坚韧的纳米陶瓷聚合物隔离层。耐酸性冷凝水浸泡与电化学腐蚀，杜绝内壁掉漆、生锈出黄水，从源头切断细菌滋生环境。
3. 精益制造超静音工作（≤ 65 dB）
全系机型电机转子经过动平衡精密校正（G2.5 级），配合加厚铝合金吸音外壳与多腔体迷宫式进气消音器。1 米处实测工作噪音严格控制在 65 dB(A) 以内，可直接置于诊室内部点对点使用。
4. 多机头智能交替运行与冗余保护
HYT / HYTG 多联机组配备微电脑控制器，按累计运行时长智能均衡分配各泵头启停；启动时采用无压延时分步启动，消除对诊所电网的电流冲击。单台泵头故障时自动报警并无缝切换，确保门诊不间断供气。
三、 口腔门诊至大型专科医院选型匹配总则
在临床设备选型时，气量计算应基于同时使用系数（Simultaneity Factor）与安全负荷裕度：
四、 延伸应用：内镜清洗中心与消毒供应中心（CSSD）洁净气源方案
除了口腔科门诊，宏润医用洁净压缩空气系统已深度服务于全国数百家二甲、三甲医院的关键医技科室：
内镜清洗消毒中心（严格执行 WS 507-2016）
胃肠镜、支气管镜在清洗消毒后，必须使用 0.2–0.4 MPa 洁净压缩空气进行管腔吹干。宏润配置的深冷吸附干燥系统将压力露点降至 -40°C 以下，三级精密微滤（0.01 μm）彻底拦截气溶胶颗粒，杜绝内镜管腔内水汽残留与二次污染。
消毒供应中心 CSSD（严格执行 WS 310.2-2016）
用于高压蒸汽灭菌器真空抽吸后破真空复压、精密器械吹干枪以及气动密封门。气体内严禁含有任何矿物油蒸气，防止在 134°C 高温灭菌舱内发生碳化污染灭菌包。
